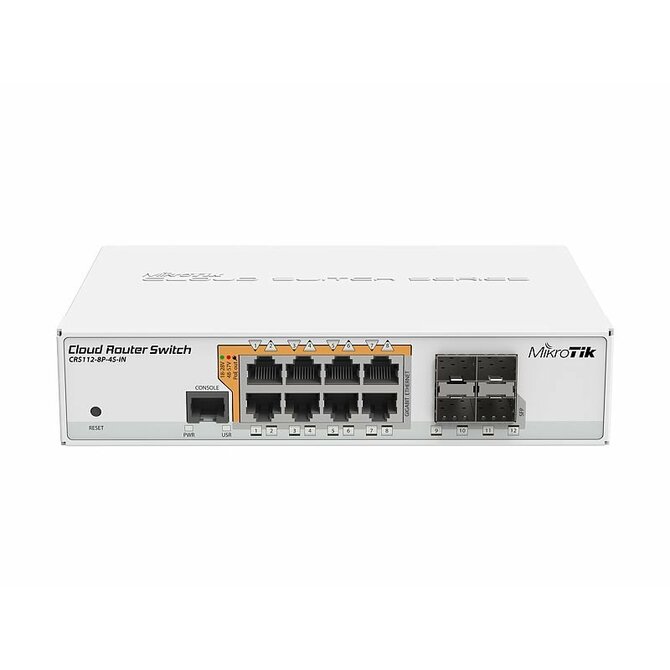

MikroTik Cloud Router Switch CRS112-8P-4S-IN, 8x GLAN s PoE, 4x SFP

CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V.

Provedení: Desktop, Rackmount
Hloubka [mm]: 143
Šířka [mm]: 200
Výška [mm]: 40
Hardware

RAM [MB]: 128
CPU: QCA8511
Velikost uložiště [MB]: 16
Konektory a rozhraní

Sériový port: RJ45
Rychlosti LAN: (8) 10/100/1000Mbps
Gigabit LAN: Ano
Rychlosti SFP/SFP+: (4) 1000Mbps
Napájení

Max. spotřeba energie [W]: 10
Typ napájení: DC konektor
Typy PoE: Výstupní
Napájení přes konektor/svorkovnici: 18 .. 57V DC
Software

Operační systém: RouterOS - L5
Výchozí IP adresa: 192.168.88.1
Výchozí jméno a heslo: admin / -
