Popis produktu

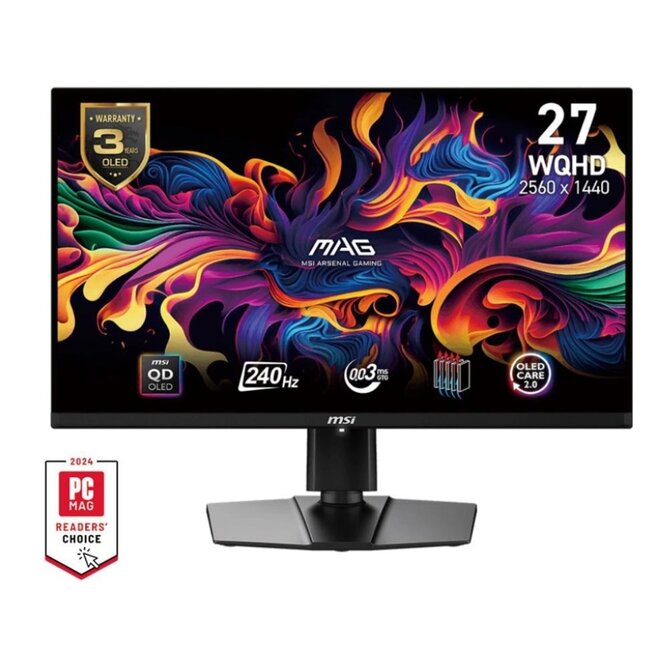

MSI MAG 271QPX QD-OLED E2,26,5" QD-OLED/2560x1440 (WQHD)/ 240Hz/0,03ms/2x HDMI/DP/USB-C/Výškově nastavitelný/Pivot
MKT Spec MAG 271QPX QD-OLED E2
Website Name MAG 271QPX QD-OLED E2
Color ID1/Black-Black
Local Dimming NA
Display
Screen Size 26.5” (67.31 cm)
Active Display Area (mm) 590.42(H) x 333.72(V)
Curvature Flat
Panel Type QD-OLED
Resolution 2560x1440 (WQHD)
Pixel pitch (mm) 0.2292(H)x0.2292(V)
Aspect Ratio 16:9
Dynamic Refresh Rate technology Adaptive-Sync
Dynamic Refresh Rate Activated Range 48~240Hz
HDR (High dynamic range) True Black 400
SDR Brightness (nits) 250
HDR Brightness (Peak nits) 1000
Contrast Ratio 1500000:1
DCR (Dynamic Contrast Ratio) NA
Signal Frequency 30~390 KHz(H) / 48~240 Hz(V)
Refresh Rate 240HZ
Response Time (MPRT) NA
Response Time (GTG) 0.03ms
Response Time (Tr + Tf) 0.1ms
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 120.7%/94.4%
NTSC (CIE1931 area percentage/overlap) 104.3%/92.4%
sRGB (CIE1976 area percentage/overlap) 138.4%/100%
sRGB (CIE1931 area percentage/overlap) 147.6%/100%
Adobe RGB (CIE1976 area percentage/overlap) 118.6%/98%
Adobe RGB (CIE1931 area percentage/overlap) 109.4%/94.9%
DCI-P3 (CIE1976 area percentage/overlap) 110.2%/99.1%
DCI-P3 (CIE1931 area percentage/overlap) 108.8%/98.5%
Rec.709 (CIE1976 area percentage/overlap) 138.4%/100%
Rec.709 (CIE1931 area percentage/overlap) 147.6%/100%
Rec.2020 (CIE1976 area percentage/overlap) 80.3%/80.3%
Rec.2020 (CIE1931 area percentage/overlap) 78.1%/78.1%
Quantum Dot Film NA
Surface Treatment Anti-Reflection
Touch Screen Non-touch
Display Colors 1.07B
Color bit 10 bits
Note_DP 2560 x 1440 (Up to 240Hz)
Note_HDMI 2560 x 1440 (Up to 240Hz)
Note_DVI N/A
I/O Ports
HDMI 2
HDMI version 2.1
HDMI HDCP version 2.3
DisplayPort 1
DisplayPort version 1.4a
DisplayPort HDCP version 2.3
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) 1
DVI NA
D-Sub NA
Line-in NA
Mic-in NA
Mic-in upstream NA
Headphone-out 1
Audio Combo NA
USB 2.0 Type A NA
USB 2.0 Type B NA
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A NA
USB 3.2 Gen 1 Type B NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader NA
Lock type Kensington Lock
Speaker NA
Webcam NA
Power
Country EU
Territory EU
Entity EU OBD
Power Type Power Cable
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) 40
Annual Energy Consumption (KWh) NA
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating G
Adapter's KC safety Number NA
Power Cord Type C13
QC Output NA
QC Output Power NA
PD Output Type C
PD Output Power 15W
Warranty
Warranty 36M
Design
Adjustment (Tilt) -5° ~ 20°
Adjustment (Swivel) -30° ~ 30°
Adjustment (Height) 0 ~ 110 mm
Adjustment (Pivot) -90° ~ 90°
Toolless Adjustable Stand
VESA Mounting 100x100mm
Frameless Design Yes
KVM
Console Mode
HDMI CEC
Firmware Update
Carton
Carton Item (SG14) SG14-M1S162A-MNT
pcs/Carton 1
Pallet
pallet Q'ty (by air) pcs 14
Q'ty/20cy (by air) pcs 140
Q'ty/40cy (by air) pcs 294
Dimension (L)(by air) mm 1200
Dimension (W)(by air) mm 1000
Dimension (H)(by air) mm 1134
Net Weight (by air) kg 145.6
Gross Weight (by air) kg 163.34
pallet Q'ty (by sea) pcs 28
Q'ty/20cy (by sea) pcs 280
Q'ty/40cy (by sea) pcs 588
Dimension (L)(by sea) mm 1200
Dimension (W)(by sea) mm 1000
Dimension (H)(by sea) mm 2140
Net Weight (by sea) kg 291.2
Gross Weight (by sea) kg 308.94
Dimension & Weight (product)
Product Dimension with Stand (WxDxH) (mm) 609 x 242 x 416
Product Dimension with Stand (WxDxH) (inch) 23.98 x 9.53 x 16.38
Product Dimension without Stand (WxDxH) (mm) 609 x 72 x 362
Product Dimension without Stand (WxDxH) (inch) 23.98 x 2.83 x 14.25
Stand Dimension (WxDxH) (mm) 309 x 242 x 391
Stand Dimension (WxDxH) (inch) 12.17 x 9.53 x 15.39
Weight (Net kg) 8.
Weight (Net lbs) 17.64
Weight Without Stand (kg) 5.3
Weight Without Stand (lbs) 11.68
Dimension & Weight (box)
Inside Carton Dimension (WxDxH) (cm) 80 x 18.5 x 50
Inside Carton Dimension (WxDxH) (inch) 31.5 x 7.28 x 19.69
Outer Carton Dimension (WxDxH) (cm) 81.8 x 20 x 52.5
Outer Carton Dimension (WxDxH) (inch) 32.2 x 7.87 x 20.67
Weight (Gross kg) 10.4
Weight (Gross lbs) 22.93
Accessories
DisplayPort Cable 1
DisplayPort Cable Version
HDMI Cable 1
HDMI Cable Version
DVI Cable 0
DVI Cable Version
USB Type A to Type B Cable 0
USB Type C to Type A Cable 0
USB Type C to Type C Cable 0
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 0
3.5mm Mic Cable 0
Power Cord 1
AC Adaptor 0
Quick Guide 1
Warranty Card 0
Mouse Bungee Unit 0
VESA Screw 4
Switch Case 0
Portable Screen Protection Case 0
Monitor Hood 0
Speaker (Accessories) 0
Model Info
Series Name Gaming
Segment Name MAG
Segment Name2 MAG 271QX
Segment Name3 MAG 271QPX QD-OLED E2
Barcode Info
EAN 4711377190312
