Transcend CM10G externí SSD rámeček, M.2 SATA SSD typ 2280/2260/2242/2230, USB-C, USB-A

Externí SSD rámeček umožňující připojení M.2 SATA SSD přes USB port PC/notebooku.

Pouze pro M.2 SATA SSD typu: 2280/2260/2242/2230
Kompatibilní s M.2 SATA B+M key
Vstupní rozhraní rámečku: USB-C
Ráímeček je dodáván s kabelem USB-C to USB Type-A a kabelem USB-C to USB-C

M.2 PCIe/SATA SSD Enclosure Kit
Transcend's CM10G is an enclosure designed specifically for M.2 PICe or SATA SSDs. By following the tool-free installation guide, you can turn an M.2 PCIe/SATA SSD into a portable USB 10Gbps external drive to harness the full potential of your system.


Portable Design with Aggressive Heat Dissipation

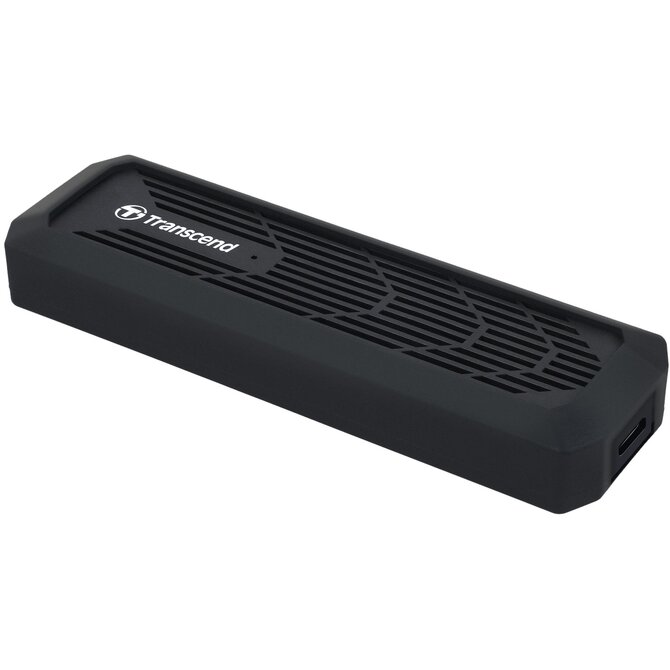

Transcend's CM10G M.2 SSD enclosure is made of aluminum and plastic, and includes a shock-absorbent silicone rubber cover. Its compact, lightweight, and anti-scratch design makes it perfect for portability. Plus, it features enhanced heat dissipation as well as an LED indicator light that lets you know when the drive is in use.


M.2 Form Factors Supported
Transcend's CM10G M.2 SSD enclosure supports both PCIe and SATA III 6Gb/s interface SSDs in M.2 form factors (2230/2242/2260/2280). Both M key and B+M key types can be inserted into the slot.


10Gbps Fast Performance
Transcend's CM10G M.2 SSD enclosure offers transfer speeds up to 10Gbps and supports UASP, delivering R/W speeds up to 1000MB/s*. Experience the incredible power of blistering speed and great performance.

*CM10G performance will vary according to factors such as the type of SSD installed and the interface of your device. Not all M.2 SSDs may reach the speeds stated above.


USB Type-A & Type-C Supported
The CM10G M.2 SSD enclosure is designed with a USB Type-C port, and both a Type-C cable and a Type-C to Type-A cable are included, providing maximum flexibility for use with PCs, laptops, mobile devices, as well as gaming consoles.


Tool-free Installation
Adjust the position of the rubber clip according to the length of your SSD.
Insert the M.2 SSD into the adapter and secure the opposite end with the rubber clip.
Remove the protruding plastic film from the thermal pad, attach it onto the SSD, and peel off the film from the other side of the thermal pad.
Close the bottom case and place enclosure in the rubber cover.
Use the included cable to connect the M.2 SSD to the computer.


Appearance
Dimensions 112.6 mm x 34.4 mm x 15.4 mm (4.43" x 1.35" x 0.61")
Weight 57 g (2.01 oz)
Interface
Connection Interface
USB 10Gbps
Operating Environment
Operating Temperature 0°C (32°F) ~ 60°C (140°F)
Storage Temperature -40°C (-40°F) ~ 85°C (185°F)
Operating Voltage
5V
Warranty
Certificate
CE/UKCA/FCC/BSMI/KC/RCM
Warranty
Two-year Limited Warranty
Warranty Policy
Please click here for more information about the Transcend Warranty Policy.
Package
Package Contents
Enclosure/Thermal pad/Rubber clip/Rubber cover/USB Type-C to Type-C cable/USB Type-C to Type-A cable/Quick Start Guide
